S-BAX-R4U6-A1-01

Tổng quan

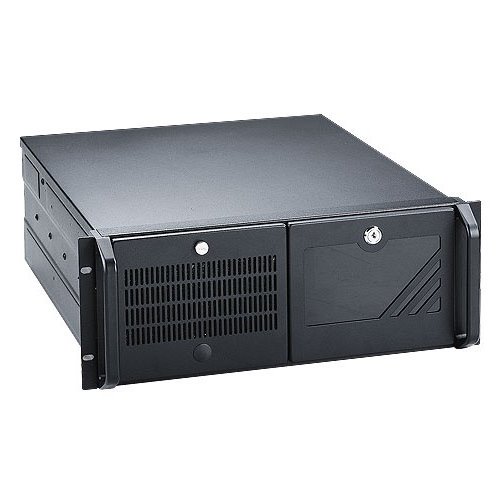

4U Industrial PC w/ Intel® 3rd, Core I5 3.4GHz/4GB/HDD500GB

Xem thêm

- Intel® Core I5, 3.1 GHz, LGA1155 Socket Processors

- Intel® H61 Express Chipset

- Memory 4GB, 240-pin DIMM Sockets Up to 8GB Dual Channel

- HDD 500GB WD GreenSATA II

- VGA, DVI-D, HDMI

- Realtek ALC662/ 661 5.1-CH HD Audio Codec

- Realtek RTL8111E PCI-Express Gigabit Ethernet

- 1 x PCIex16, 2 x PCIex1, 1 x PCI

- 4 SATA II, 8 USB 2.0, 1 COM (Rs-232)
System
BIOS AMI UEFI 32Mbit Flash ROM BIOS
CPU Intel® LGA1155 Socket Supports 2nd /3rd Generation Core™ i7/ i5/ i3, Pentium® and Celeron® Processors (Max. TDP at 65W)
Expansion 1 x PCIex16, 2 x PCIex1, 1 x PCI
H/W Status Monitor Monitoring CPU Temperature and Fan Status with Auto Throttling Control
I/O Chip Nuvoton NCT5577D
System Chipset Intel® H61 Express Chipset
System Memory Two 240-pin DIMM Sockets Up to 8GB Dual Channel Unbuffered DDR3 1066/ 1333MHz SDRAM

I/O
MIO 4 SATA II 3.0Gb/s, 1 x S/PDIF-out Header, 1 x Keyboard, 1 x Mouse, 1 x RS-232
USB 8 x USB 2.0 (4 x USB 2.0 Ports, Rear I/O Connectors; 4 x USB 2.0 Ports, Internal Pin-header)

Display
Chipset Intel® HD Graphics Media Accelerator 2000/ 3000（Based on CPU Type） Support for DX10.1 and OpenGL3.0
Resolution VGA: 2048 x 1536 @ 75Hz; HDMI: 1920 x 1200 @ 60Hz or DVI-D: 1920 x 1200 @ 60Hz Selection by Jump （The DVI-D Port does’t Support D-Sub Connection by Adapter）

Audio
Audio Codec Realtek ALC662/ 661 5.1-CH HD Audio Codec
Audio Interface Mic-in, Line-in, Line-out

Ethernet
LAN 1 Realtek RTL8111E PCI-Express Gigabit Ethernet

Mechanical & Environmental
Operating Humidity 0 ～ 90％ Relative Humidity, Non-condensing
Operation Temperature 0 ～ 50°C （32 ～ 121°F）
Power Requirement ＋12V/ ＋5V/ 5Vsb
Power Type ATX
Size ( L x W ) 9.6” x 7.28” （244mm x 185mm）
Storage Temperature -40 ～ 75°C （-40 ～ 167°F）
Weight 0.88lbs （0.4kg）
